Centrifugal Concentrator

The Gold Centrifugal Concentrator is a brilliant gravity separation equipment widely used in the mining industry, especially for placer gold, fine-grain rock gold, and other precious minerals.

【Modes】

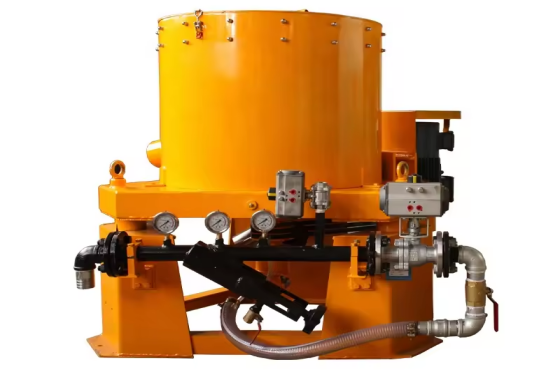

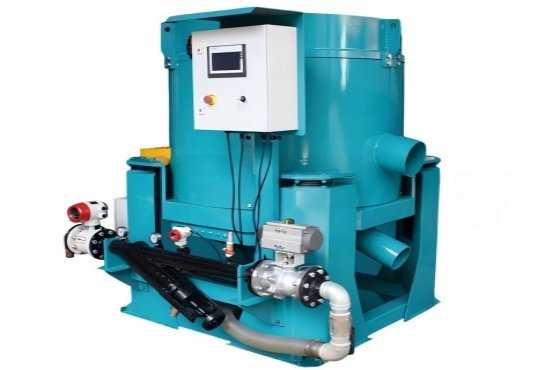

(1) Timed automatic discharge centrifuge, customizable, higher efficiency, higher price.

(2)  Non-automatic discharge centrifuge, common use, in stock, manually stop working and remove the gold concentrate after a few hours of operation. We have it both in industry type and laboratory type small centrifuge.

(3) Customized fixed centrifugal and mobile concentrators (mobile gold wash plant usually equipped with portable trommel screen, portable gold centrifuge, portable gold shaker table, etc.)

【Brand】Knelson Concentrator, JYM  gold concentrator is the best replacement for Knelson Concentrator with affordable price, complete models, and wide capacity range.

【Related Product】

Feeding: slurry pump or gravity flow by the height difference

After gold centrifuge: tailing ⇒ sluice box; concentrate ⇒ shaker table or amalgamator

【Gold Concentrator VS Jig Concentrator】 Centrifugal gold concentrator is easier to debug, and gold safer. It can only remove the gold concentrate after 4-6 hours of continuous work.

【Gold Concentrator VS Jig Concentrator】 Centrifugal gold concentrator is easier to debug, and gold safer. It can only remove the gold concentrate after 4-6 hours of continuous work.

【Main Parts of Centrifugal Concentrator】Feeding, rotor, groove, motor, backwash water, PU lining plate, bearing, frame, tailings and concentrate discharge, etc.

【Working Principle of Centrifugal Concentrator】

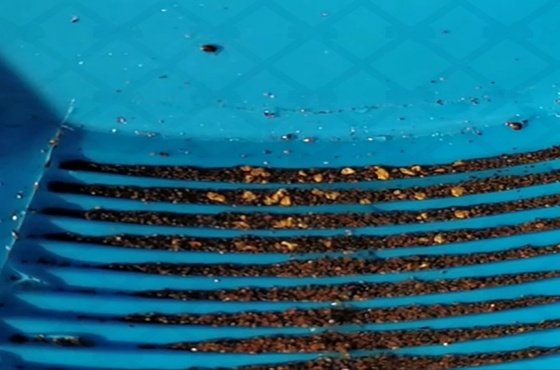

The rotor of the centrifuge rotates at a high speed. Under the action of centrifugal force, heavy minerals are stacking on the inner plate groove of the rotor core, and the light ore particles are gradually discharged. After about 4-6 hours of operation, stop feeding, and turn on the backwater to wash out the gold concentrate.

Gold centrifugal concentrator is useful in the gold recovery in all ranges of particle size. It is most especially useful for recovering fine gold which gets lost during the operation of gravity concentrators. The application has shown that the recovery of gold can be very high, as much as 99% and the concentration ratio is up to 1,000 times. In the recovery of natural gold in lode ore that has a particle size of -0.074mm, the gold recovered is about 98%, for recovery of gold in particle size of 0.004mm, it is up to 97%.

【Gold Mining Equipment Manufacturer】

JYM machinery supply alluvial gold mining equipment for more than 30 years, produces different types of gravity separators, includes a gold centrifugal concentrator, shaking table, spiral separator, jig concentrator.

Technical Parameters
